Overview

This article provides a service parts reference for the Orangebox Camper & Den™ Awning. Use the exploded-view diagram and itemized tables below to identify replacement frame components, slat assemblies, fabric panels, awning cords, hardware, and attachment components.

All tables include the corresponding Item Number shown in the exploded-view drawing for easy cross-reference during field service and replacement part ordering.

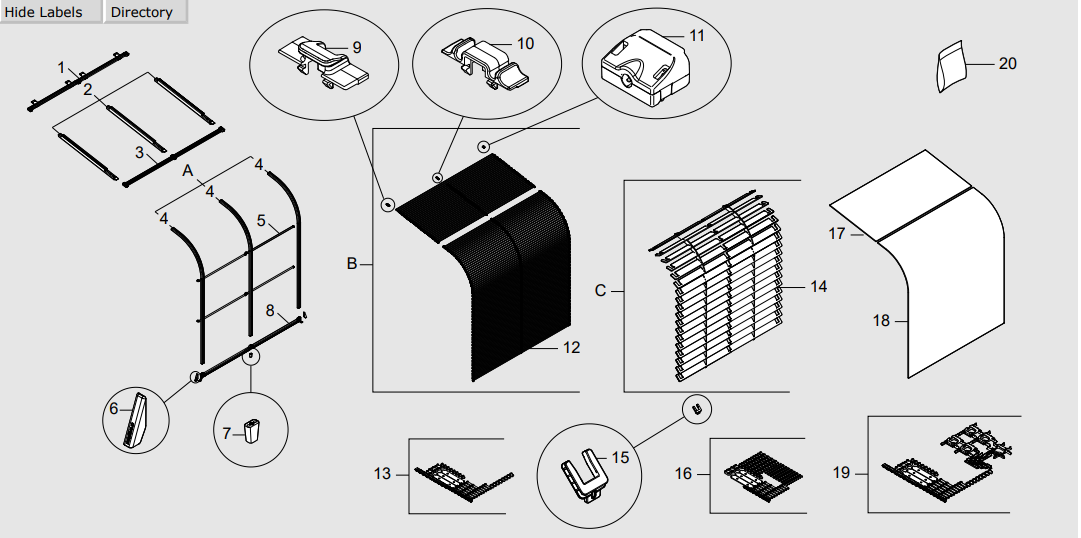

Exploded View Reference

Use the item numbers shown in the diagram below when identifying replacement components.

Applies To

• OB1AW01
• OB1AW02

Several components are specific to either the OB1AW01 or OB1AW02 awning style. Verify the awning model before ordering replacement parts.

Structural Frame Components

Foot Components

Awning Cord System

The awning cord system includes clips, cord supports, tie-off brackets, and attachment hardware used to secure and tension the awning fabric system.

Slat Assemblies

Main Slat Panels

Individual Slat Components

Note: Slat panel finishes are option-specific and may require finish selection when ordering.

Slat Molding Components

Slat Attachment Hardware

Fabric Components

Canopy Fabric

Wall Fabric

Note: Fabric components are option-dependent and may require finish selection at the time of ordering.

Fabric Attachment Hardware

These components are used to secure fabric and awning assemblies to the supporting structure.

Complete Service Parts Summary

Ordering Guidelines

Before ordering replacement parts:

1. Verify whether the awning is OB1AW01 or OB1AW02.
2. Locate the damaged component in the exploded-view diagram.
3. Identify the corresponding Item Number.
4. Match the Item Number to the service parts table above.
5. Verify finish and fabric selections when ordering slat or fabric components.
6. Confirm all required attachment hardware is included when ordering structural or fabric assemblies.
