⚠️ IMPORTANT SAFETY INFORMATION

Monitor / TV Size Range: 32”–55”

Maximum Weight: 25 kg / 55 lb (LED / LCD / Plasma)

⚠️ Do NOT exceed the stated size or weight limits.
Exceeding these limits may result in structural failure or personal injury.

Product Description

This article covers installation of the screen‑mounted fixed monitor bracket used to mount a display over the upholstery panels on Air3 Pods.

The bracket is factory fitted to the pod screens. The installer/customer is responsible for attaching and securing the monitor.

Compatibility

• VESA 100 × 100
• VESA 200 × 200

Fixings and tools may vary based on the display manufacturer and mounting configuration

Tools & Fixings Required

Fixings

• M8 Spring T‑Nuts (Qty 8)
• M8 × 10 Flange Button Head Socket Screws (Qty 8)
• No.10 Button Head Self‑Tapping Wood Screws – 1/2" (Qty 8)
• M8 × 30 Fixings (upholstery to bracket)
• M6 × 45 Fixings (monitor locking)

Tools

• No. 5 Allen key
• Pozidriv screwdriver
• Torque wrench (6 Nm / 4.42 ft‑lb)

Installation Steps

1. Verify Bracket Position

• Bracket is factory fitted to pod screens
• Correct measurement is 765 mm from top of screen crossbar to top flat edge of bracket

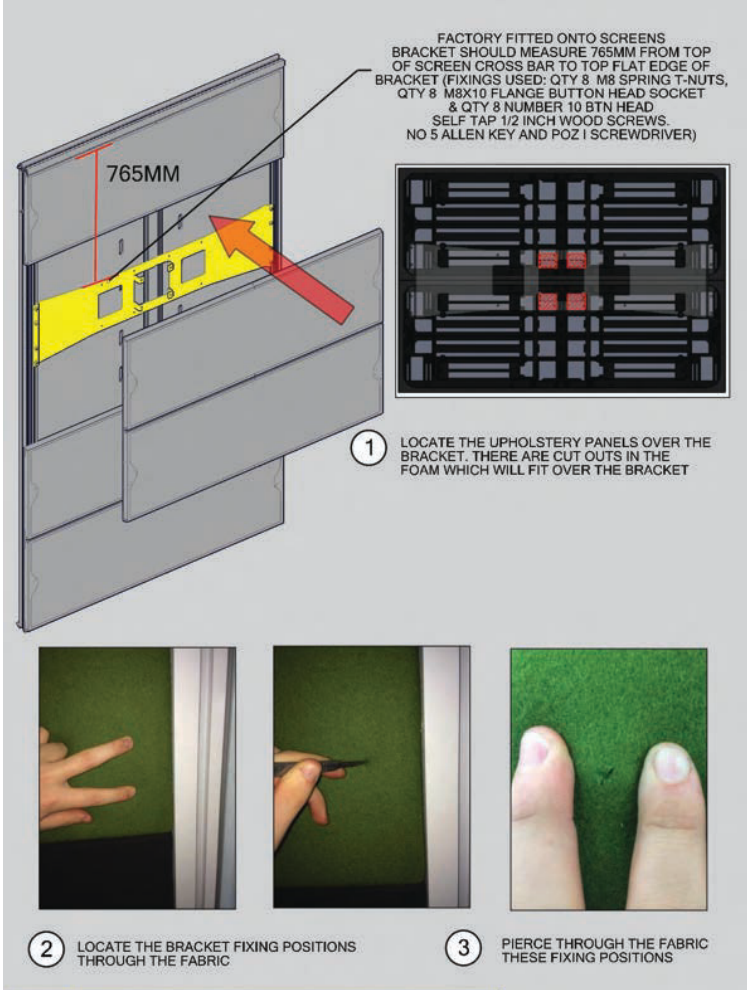

2. Prepare Upholstery Panels

• Position upholstery panels over the bracket
• Foam includes cut‑outs to clear the bracket
• Locate fixing points through the fabric
• Carefully pierce fabric at fixing locations

Minimum: One person

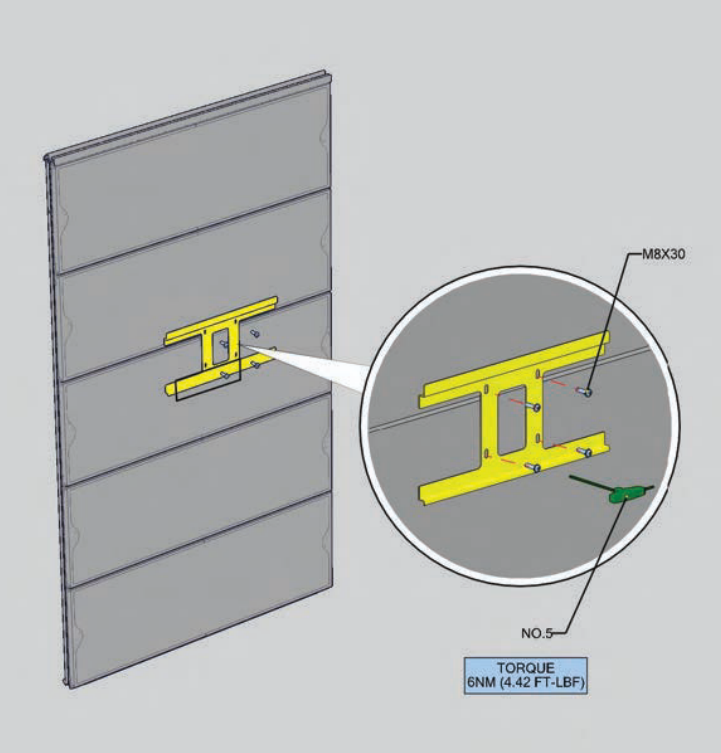

3. Secure Upholstery to Bracket

• Fix through fabric into bracket using M8 × 30 fixings
• Tighten to 6 Nm (4.42 ft‑lb)

Minimum: One person

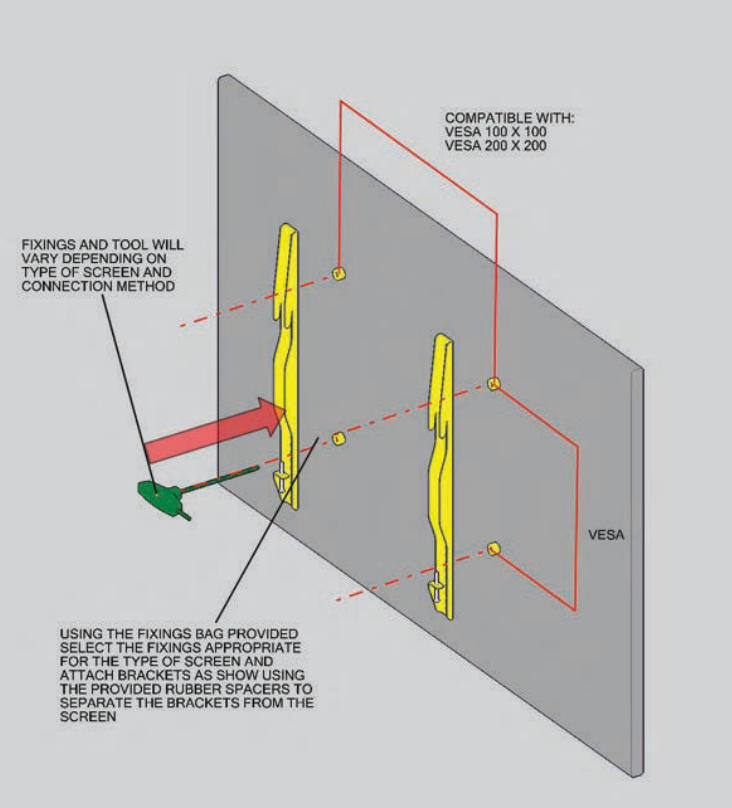

4. Attach Brackets to Monitor

• Select correct fixings from the supplied hardware pack
• Use the provided rubber spacers between the bracket and the screen
• Attach brackets using the appropriate VESA pattern

Minimum: Two persons

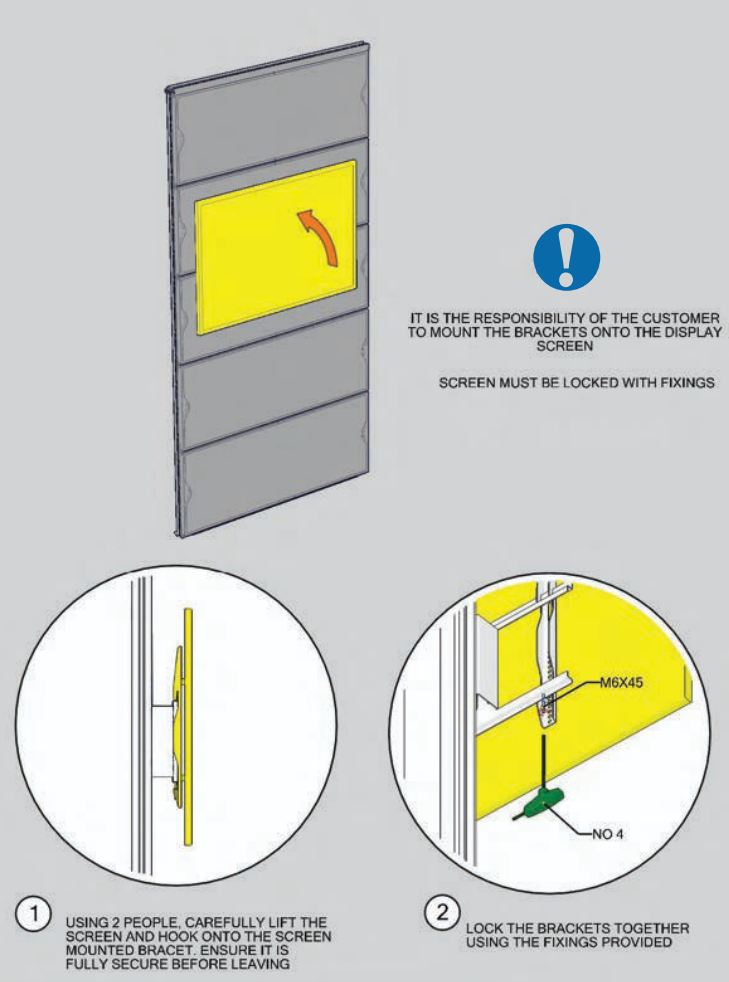

5. Hang and Lock the Monitor

⚠️ Customer responsibility

• Using two people, lift the monitor onto the screen‑mounted bracket
• Ensure the monitor is fully seated
• Lock brackets together using M6 × 45 fixings

Minimum: Two persons

Critical Notes

• Always confirm screen weight before installation
• Ensure all locking fixings are installed
• Never leave a screen unsecured on the hook‑on brackets
• Follow torque settings to prevent damage or loosening

Quick Reference

• Screen Size: 32”–55”
• Max Weight: 25 kg / 55 lb
• VESA: 100×100, 200×200
• Torque: 6 Nm (4.42 ft‑lb)

Reference

Air3 Over‑the‑Upholstery Monitor Bracket – Installation Instructions
Sections 9.6 – 9.10
