Overview

This article provides a service parts reference for the Orangebox Camper & Den™ 02 (CD02) BLS/BRS Frame Assembly. Use the exploded-view diagram and item numbers to identify replacement frame components, door assemblies, tracks, attachment hardware, and structural support components.

All tables include the Item Number shown in the exploded-view diagram for easy cross-referencing during field service and parts ordering.

Exploded View Reference

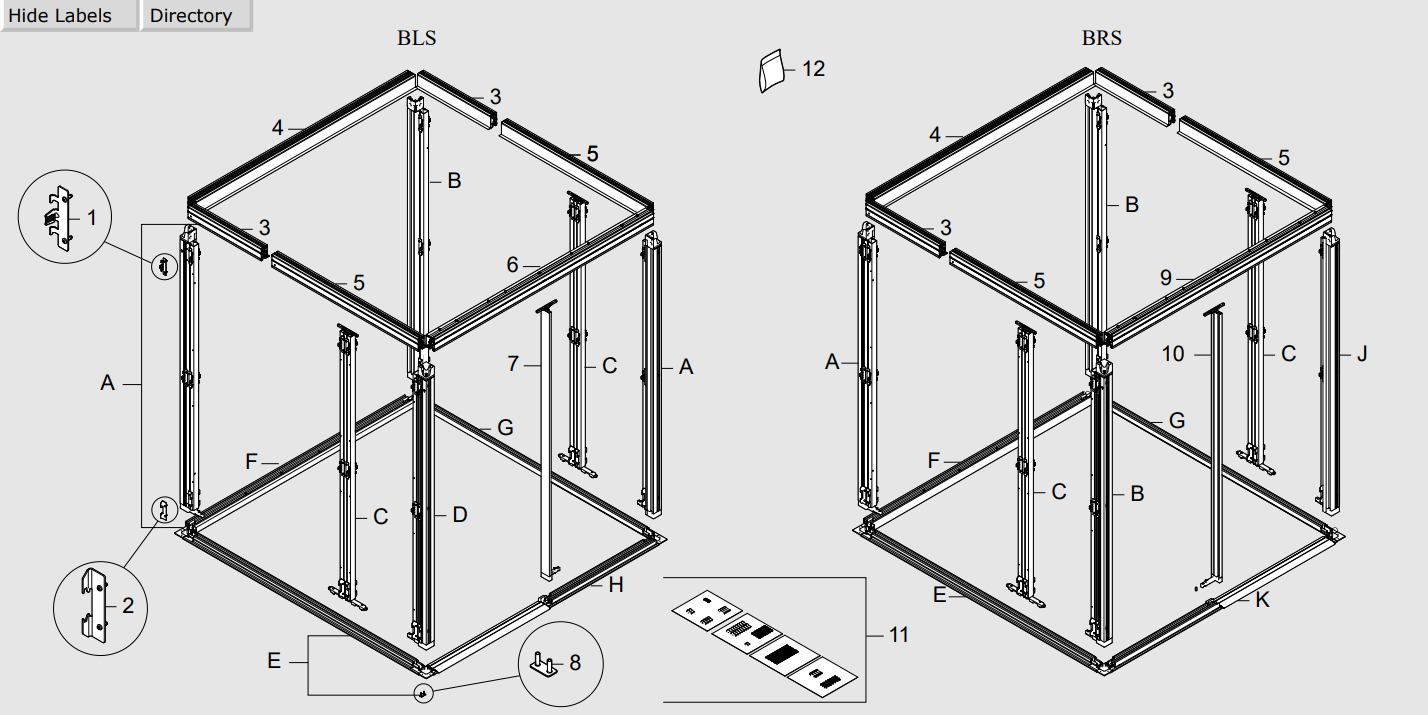

Use the item numbers shown below when identifying replacement components.

Applies To

• Camper & Den™ 02 (CD02)
• BLS Configuration
• BRS Configuration

Vertical Beams

Corner & Intermediate Beams

Part Notes

• Items A, B, C, D, and J include:
  • Item 1 – Bracket - Tinnerman
  • Item 2 – Bracket - Crab

Base Tracks

Part Note: Base track assemblies include Item 8 - Bracket - Stud, Corner.

Top Tracks

Side Wall Tracks

Back Track

Door Tracks

Sliding Door Beams

Installation & Attachment Hardware

Part Note: Item 12 is used on Items 6 and 9 Top Door Tracks.

Component Hardware

Service Parts Summary

Ordering Guidelines

Before ordering replacement parts:

1. Verify whether the unit is a BLS or BRS configuration.
2. Locate the affected component in the exploded-view diagram.
3. Identify the corresponding Item Number.
4. Match the Item Number to the service part table above.
5. Review all included-component notes before ordering assemblies.
