Overview

This article provides a service parts reference for Orangebox Camper & Den™ 02 Door, Glass & Cover Trim assemblies. Use the exploded-view diagram and itemized tables below to identify replacement glass kits, glazing kits, fascia assemblies, trim components, door hardware, seals, and installation accessories. All tables include the corresponding Item Number shown in the service diagram for quick cross-reference.

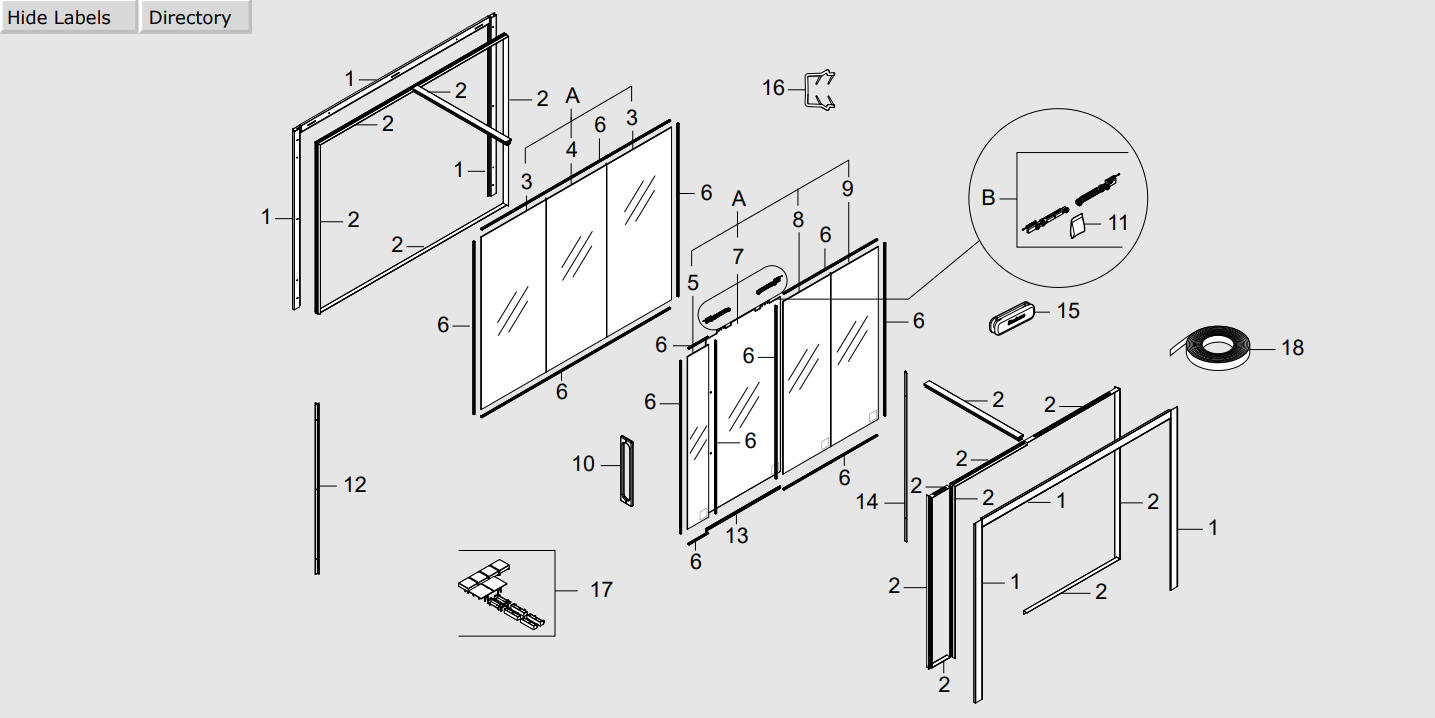

Exploded View Reference

Use the item numbers shown below when locating replacement parts.

Applies To

• OB1CD02DLS
• OB1CD02DRS
• OB1CD05DLS
• OB1CD05DRS
• OB1CD05DLSNB
• OB1CD05DRSNB
• Related BLS/BRS configurations identified within the service parts reference

Glass Kits

Door Roller Assembly

Fascia Kits

Cover Trim Assemblies

Glass Panels

Rear Glass Panels

Front & Rear Glass Panels

Front Glass Panels

Glazing Kits

Door Components

Part Note: Item 11 includes door handle attachment hardware.

Corner & Trim Components

Item 12 Application: OB1CD02DLS, OB1CD02DRS, OB1CD05DLS, OB1CD05DRS, OB1CD05DLSNB, and OB1CD05DRSNB.

Tools & Consumables

Note: Glazing tape pricing is available through the Steelcase Pricing Tool.

Complete Service Parts Summary

Ordering Guidelines

Before ordering replacement components:

1. Verify the Camper & Den model number.
2. Determine whether the unit is a DLS, DRS, standard, or Canadian Infill (NB) configuration.
3. Locate the affected component in the exploded-view diagram.
4. Identify the corresponding Item Number.
5. Match the Item Number to the appropriate service parts table.
6. Confirm model compatibility before submitting the order.
