Overview

This article provides a service parts reference for Orangebox Camper & Den™ 02 (CLS/CRS) Door, Glass Corner & Cover Trim assemblies. Use the exploded-view diagram and itemized parts tables below to identify replacement glass kits, cover trim components, glazing materials, door hardware, seals, and installation accessories. All tables include the corresponding Item Number for easy cross-reference with the exploded-view drawing.

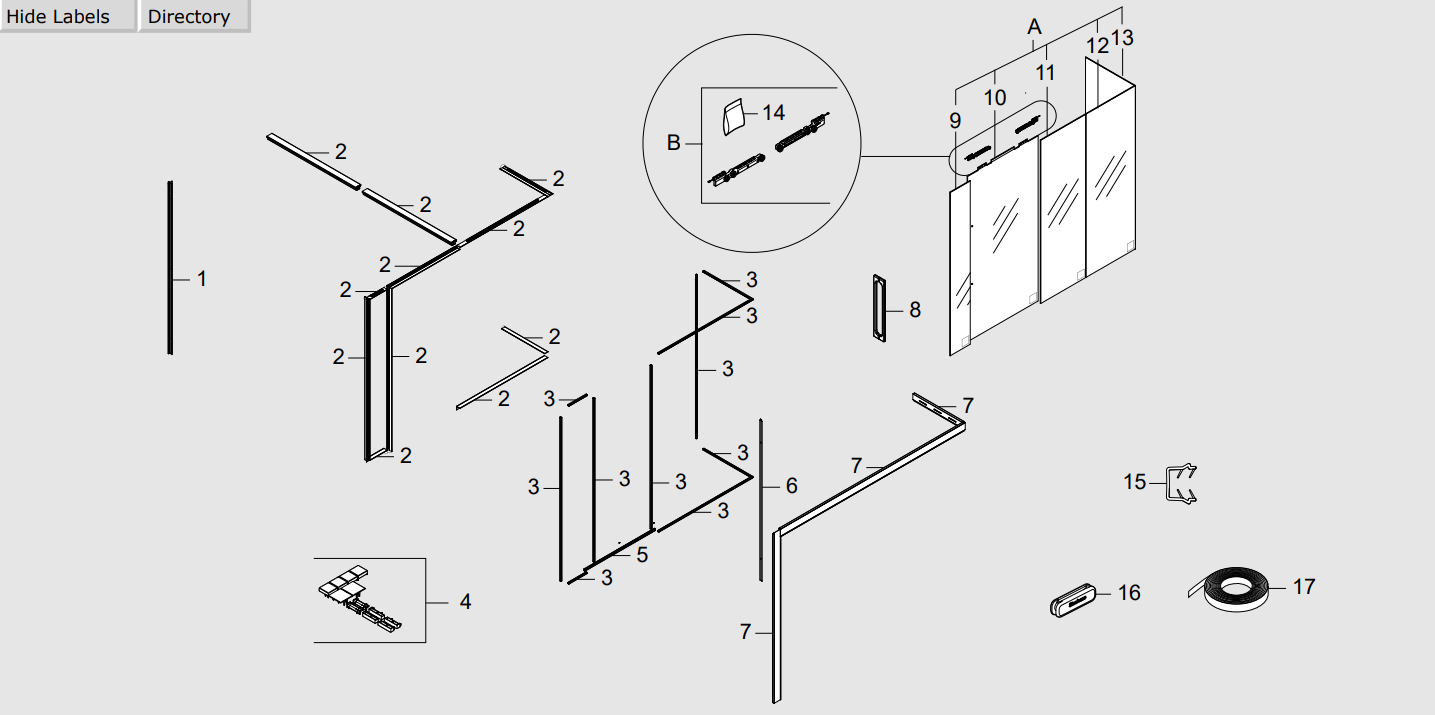

Exploded View Reference

Use the item numbers shown below when identifying replacement components.


Applies To

• OB1CD02CLS
• OB1CD02CRS
• OB1CD05CLS
• OB1CD05CRS

Glass Kits

Door Roller Assembly

Corner & Trim Components

Cover Trim Assemblies

Glazing Kits

Door Components

Part Note: Item 14 includes door handle hardware.

Fascia Kits

Glass Panels

Front Glass Panels

Corner & Rear Glass Panels

Tools & Consumables

Note: Glazing tape pricing is available through the Steelcase Pricing Tool.

Complete Service Parts Summary

Ordering Guidelines

Before ordering replacement components:

1. Verify the Camper & Den model configuration (CLS or CRS).
2. Determine whether the product is a standard or Canadian Infill (NB) model.
3. Locate the damaged component in the exploded-view diagram.
4. Identify the corresponding Item Number.
5. Match the Item Number to the service parts tables above.
6. Verify model applicability before placing the order.
