Overview

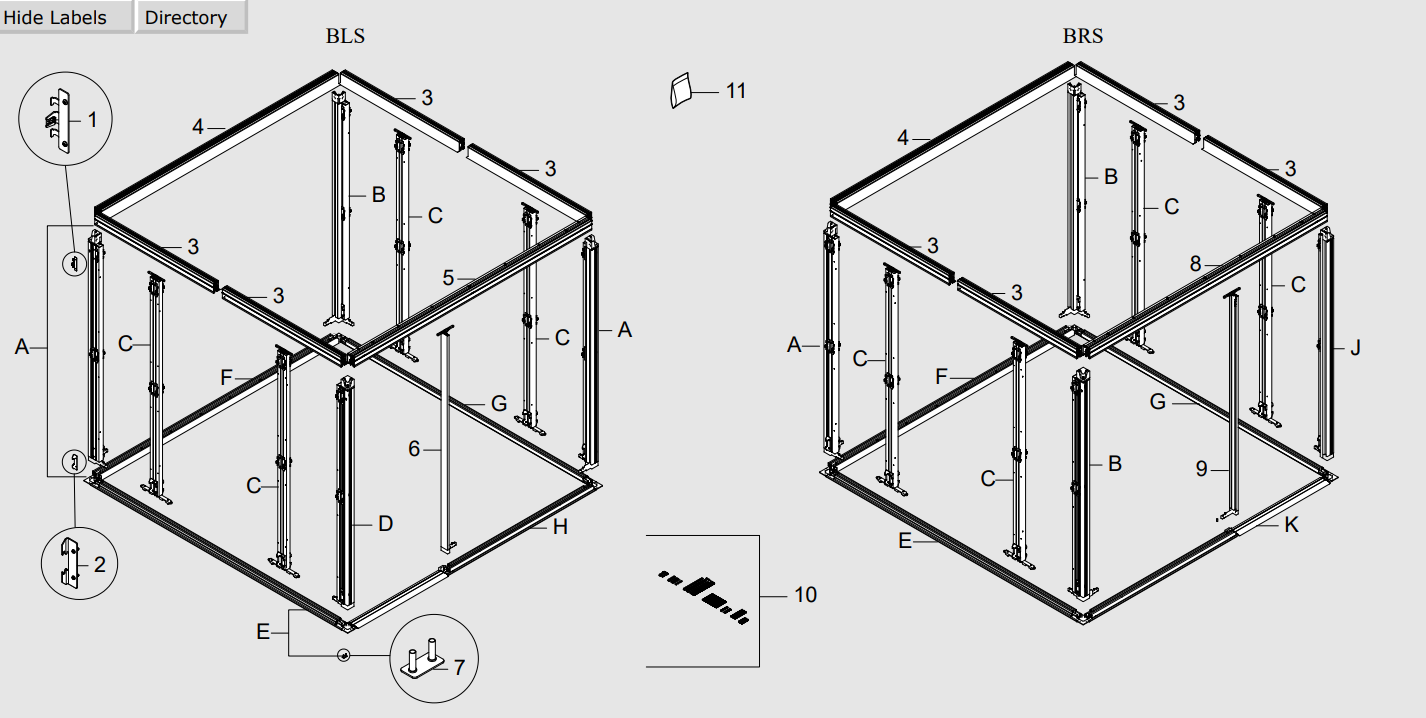

This article provides a service parts reference for the Orangebox Camper & Den™ 05 (BLS/BRS) Frame Assembly. Use the exploded-view diagram and itemized tables below to identify replacement frame components, structural beams, base tracks, top tracks, sliding door supports, and installation hardware.

All tables include the corresponding Item Number from the exploded-view drawing for easy cross-reference during field service and parts ordering.

Exploded View Reference

Use the item numbers shown below when identifying replacement components.

Applies To

• OB1CD05BLS
• OB1CD05BRS

Vertical Beam Assemblies

Part Note: Items A, B, C, D, and J include:

• Item 1 – Bracket - Tinnerman
• Item 2 – Bracket - Crab

Base Track Assemblies

Part Note: Base track assemblies include Item 7 – Bracket - Stud, Corner.

Frame Hardware

Top Track Assemblies

Side Wall Tracks

Back Wall Track

Door Tracks

Sliding Door Components

Installation & Attachment Hardware

Part Note: Item 11 is used on Items 5 and 8 Top Door Track assemblies.

Complete Service Parts List

Ordering Guidelines

Before ordering replacement components:

1. Verify whether the unit is configured as BLS or BRS.
2. Locate the affected component using the exploded-view diagram.
3. Identify the corresponding Item Number.
4. Match the Item Number to the service parts tables above.
5. Review assembly notes for included hardware and brackets before ordering.
6. Verify whether installation or attachment hardware is required when replacing frame components.
