Overview

This article provides a service parts reference for Orangebox Camper & Den™ 02 and 05 Door, Glass & Cover Trim assemblies. Use the exploded-view diagram and the itemized tables below to identify replacement glass, trim, glazing, door hardware, seals, and related service components.

All tables include the Item Number shown in the exploded-view drawing to simplify field identification and ordering.

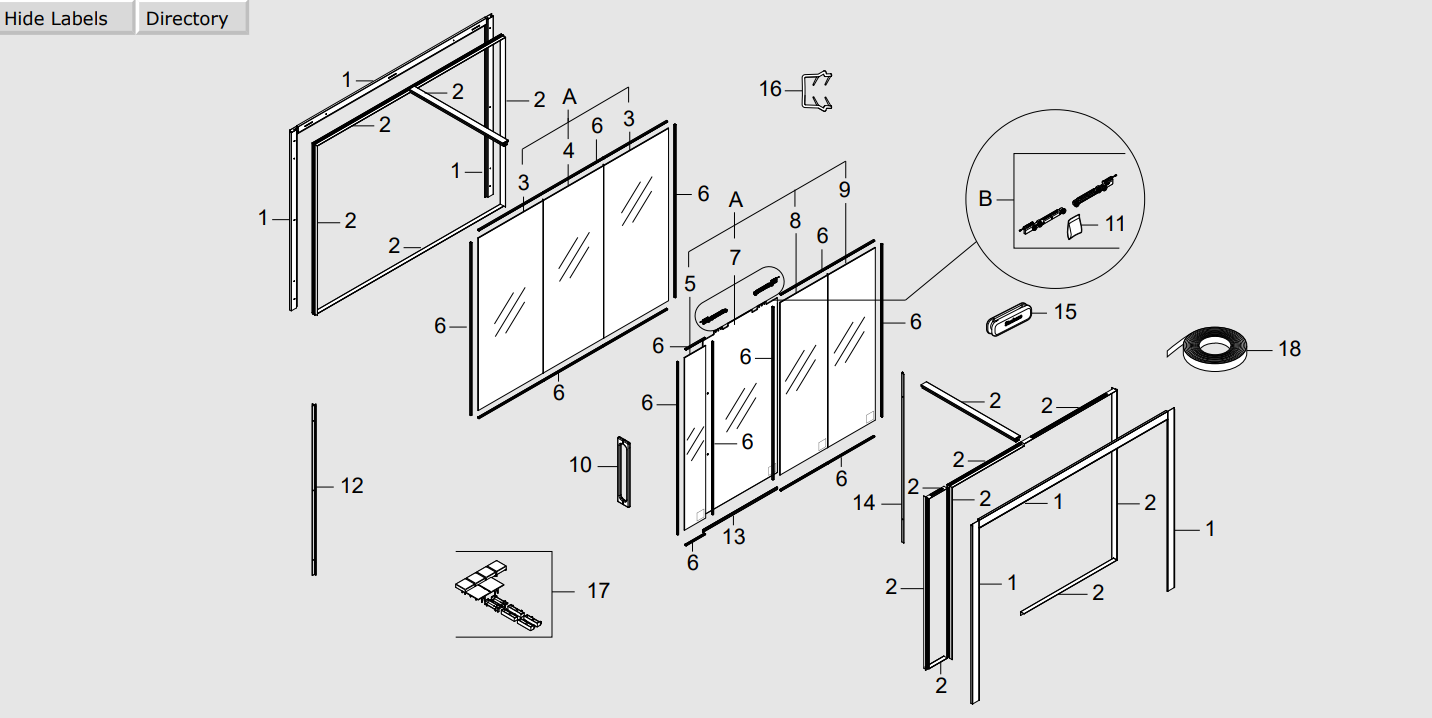

Exploded View Reference

Use the item numbers shown below when identifying replacement components.

Glass Kits

Door Roller Assembly

Fascia Kits

Cover Trim Assemblies

Glass Panels

Rear Glass Panels

Front & Back Glass Panels

Front Glass Panels

Glazing Kits

Door Components

Part Note: Item 11 includes door handle hardware.

Corner & Trim Components

Item 12 Application: OB1CD02DLS, OB1CD02DRS, OB1CD05DLS, OB1CD05DRS, OB1CD05DLSNB, and OB1CD05DRSNB.

Installation Tools & Consumables

Note: Pricing for glazing tape is available through the pricing tool.

Ordering Guidelines

Before ordering replacement components:

1. Verify the Camper & Den model number.
2. Determine whether the unit is a BLS, BRS, DLS, or DRS configuration.
3. Verify whether the unit includes a Canadian Infill option.
4. Locate the Item Number in the exploded-view diagram.
5. Match the Item Number to the corresponding table in this article.
6. Confirm model applicability prior to ordering.
