Overview

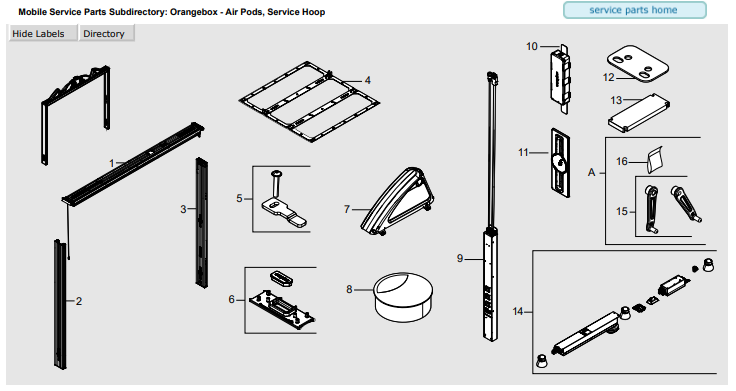

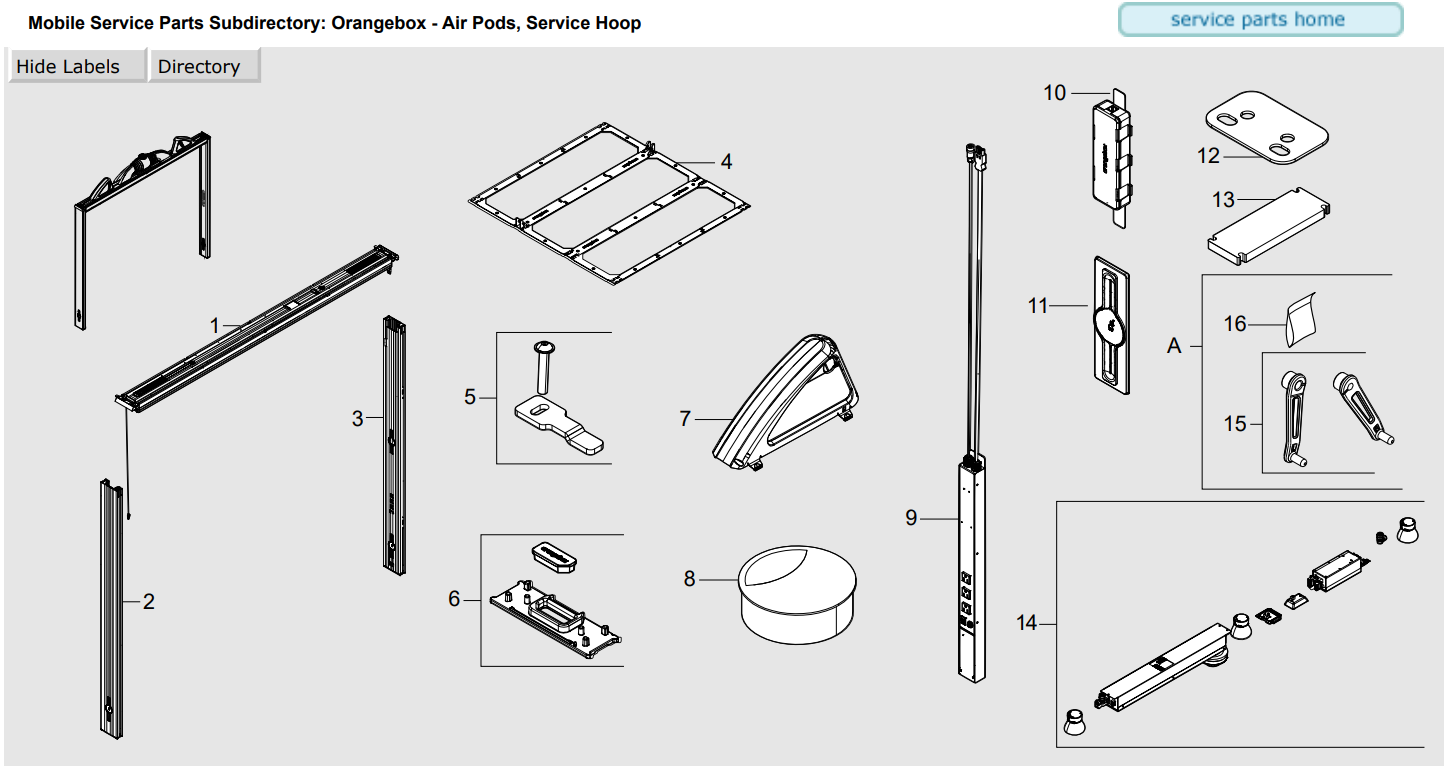

This article provides a reference guide for replacement service parts associated with the Orangebox Air Pods Service Hoop assembly. Use the exploded diagram below to identify the required part and reference the corresponding service part number when ordering replacements.
[Steelcase...rvice Hoop | PDF]
Service Parts List
| Item | Part Number | Description | Qty |
|---|---|---|---|
| 1 | 1446610001SR | Frame - Hoop, Horizontal, Air23/25/27 | 1 |
| 1 | 1446610002SR | Frame - Hoop, Horizontal, Air29 | 1 |
| 2 | 1446608001SR | Frame - Hoop, Vertical, Switch Side | 1 |
| 3 | 1446609001SR | Frame - Hoop, Vertical, Power Side | 1 |
| 4 | 1379688001SR | Jig - Installation, Pod | 1 |
| 5 | 1381768001SR | Bracket - Hoop to Screen | 4 |
| 6 | 1381770001SR | Cap - Hoop | 2 |
| 7 | OBAIRO21801SR | Cover - Actuator, Cowl | 1 |
| 8 | OB10341814SR | Cover - Grommet, External | 1 |
| 9 | OBSYSCOM127SR | Electrical Package - Vertical, Power Side | 1 |
| 10 | OBSYSCOM126SR | Electrical Package - Vertical, Switch Side | 1 |
| 11 | OBAIREA2004500SR | Cover - Grommet, Internal | 1 |
| 12 | OB017000SR | Pad - Bracket, Hoop | 2 |
| 13 | OBAIR11700SR | Spacer - Fan | 1 |
| 14 | OBSYSCOM158SR | Electrical Package - Horizontal, Air23/25/27 | 1 |
| 14 | OBSYSCOM129SR | Electrical Package - Horizontal, Air29 | 1 |
| 15 | 1498085001SR | Arm - Crank, Left Hand and Right Hand (on or after 6/10/2019) | 1 |
| 16 | 1498086001SR | Hardware - Roof Drive | 1 |
| 17 | 1381773001SR | Hardware - Attachment, Accessory, Hoop Mount | 1 |
| 18 | 1381774001SR | Hardware - Attachment, Frame | 1 |
| 19 | 1474858001SR | Sensor - Heat | 1 |
[Steelcase...rvice Hoop | PDF]
Important Service Notes
Crank Arm Replacement
The following service parts have been discontinued and replaced:
| Discontinued Part | Replacement |
|---|---|
| Arm - Crank, Left Hand and Right Hand (before 6/10/2019) | 1498085001SR and 1498086001SR |
| Arm - Crank, Left Hand and Right Hand (on or after 6/10/2019) | 1498085001SR and 1498086001SR |
Additional Notes:
- Previous crank arms used with felt roof blades have been replaced by current service parts.
- Current crank arm (1498085001SR) is for use with aluminum roof blades. [Steelcase...rvice Hoop | PDF]
Bracket - Hoop to Screen (Item 5)
- Part number: 1381768001SR
- Includes mounting hardware. [Steelcase...rvice Hoop | PDF]
Hardware Kits (Items 17 & 18)
- Graphics are not available for these parts in Product Reference. [Steelcase...rvice Hoop | PDF]
Ordering Information
When submitting a service request or replacement part order, provide:
- Pod model (Air23, Air25, Air27, or Air29)
- Item number from the diagram
- Service part number
- Quantity required
This helps ensure the correct service component is ordered and shipped.
Source: Steelcase Product Reference - Service Hoop [Steelcase...rvice Hoop | PDF]
