Overview
This article provides a reference guide for service and replacement parts related to the Door Glass, Front Glass, and Back Glass assemblies for Orangebox Air Pods. Use the exploded parts diagram to identify the required component and corresponding service part number when ordering replacement parts.
[Steelcase...ack Panels | PDF]
Door Glass, Front Glass, and Back Glass Components
Glass Panels
| Item | Part Number | Description |
|---|---|---|
| 1 | OBAIR40201SR | Glass - Back/Front, 34 11/16" Wide |
| 1 | OBAIR40501SR | Glass - Back/Front, 36 5/8" Wide |
| 1 | OBAIR40601SR | Glass - Back/Front, 40 3/4" Wide |
| 1 | OBAIR40301SR | Glass - Front, 26 13/16" Wide |
| 7 | OBAIR40401SR | Glass - Door, Standard, 45 11/16" Wide |
| 20 | OB2200725SR | Glass - Front, AODA, 14 31/32" Wide |
All glass panel part numbers above are listed within the service parts directory for Orangebox Air Pods Door Glass Front and Back Panels. [Steelcase...ack Panels | PDF]
Glass Frames
| Item | Part Number | Description |
|---|---|---|
| 5 | OBAIRGA125SR | Frame - Back Glass for Air23/25/27 |
| 5 | 1446615001SR | Frame - Glass, Back, Air29 |
| 6 | OBAIRGA124SR | Frame - Front Glass for Air23/25/27 |
| 6 | 1446614001SR | Frame - Glass, Front, Air29 |
[Steelcase...ack Panels | PDF]
Door Hardware Components
| Item | Part Number | Description |
|---|---|---|
| A | 1381769001SR | Bracket - Glass Safety |
| B | 1381764001SR | Clamp - Glass |
| C | 1381765001SR | Clip - Cover, Door Track |
| D | 1381762001SR | Stop - Door |
| 4 | OBAIR32600SR | End Cap - Door Handle |
| 8 | 1381761001SR | Handle - Door, Inner and Outer |
| 10 | OBAIR2182200SR | Flipper - Door, Upright |
| 11 | 1381767001SR | Guide - Door, Bottom, Pair |
| 12 | OBAIR12000SR | Runner Assembly - Door, Straight |
| 16 | 1381775001SR | Casting - Door Track, Bottom |
[Steelcase...ack Panels | PDF]
Seals and Gaskets
| Item | Part Number | Description |
|---|---|---|
| 2 | 1450186001SR | Seal - Glass, Post Fix, 66 ft |
| 9 | OBAIR2042621SR | Gasket - Glass |
| 14 | 1381763001SR | Seal - I Lines, Back Door Edge |
[Steelcase...ack Panels | PDF]
Fasteners
| Item | Part Number | Description |
|---|---|---|
| 3 | OBSYSFIX013SR | Screw - Hex, M8 x 12mm |
| 13 | OBSYSFIX065SR | Screw - M8 x 60mm |
| 15 | OBSYSFIX020SR | Screw - Countersunk, M8 x 16mm |
[Steelcase...ack Panels | PDF]
Complete Glass Kits
| Item | Part Number | Description |
|---|---|---|
| 18 | 1381778001SR | Glass Kit - Air23/25/27 |
| 19 | 1381779001SR | Glass Kit - Air29 |
These glass kits are available with applicable configuration options through Product Reference. [Steelcase...ack Panels | PDF]
Discontinued Service Parts
| Item | Description | Status |
|---|---|---|
| 17 | Hardware - Lock Kit | Service Part Discontinued |
| 21 | Glass - Door, Lock Cutout | Service Part Discontinued |
These components are no longer available as service parts. [Steelcase...ack Panels | PDF]
Ordering Guidelines
When requesting replacement glass components or service parts, provide:
- Air Pod model (Air23, Air25, Air27, or Air29)
- Item number from the exploded diagram
- Service part number
- Description of the required component
- Quantity required
Providing complete part information helps ensure accurate ordering and fulfillment. [Steelcase...ack Panels | PDF]
Reference Diagram

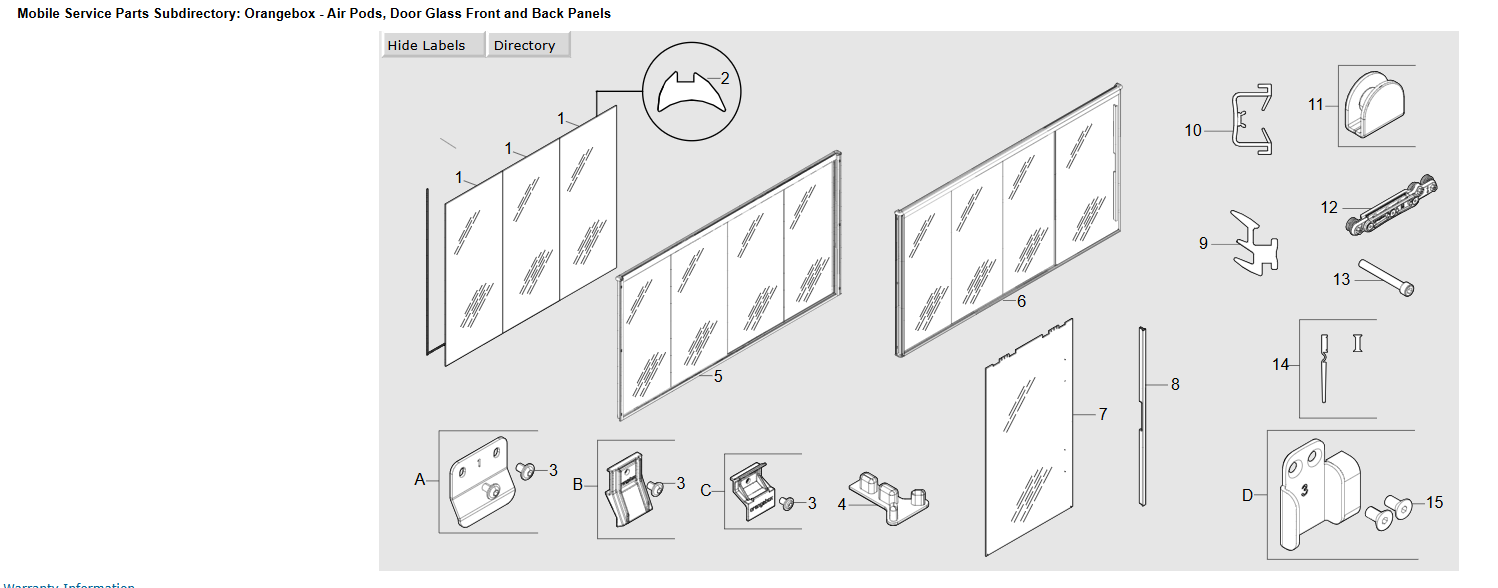

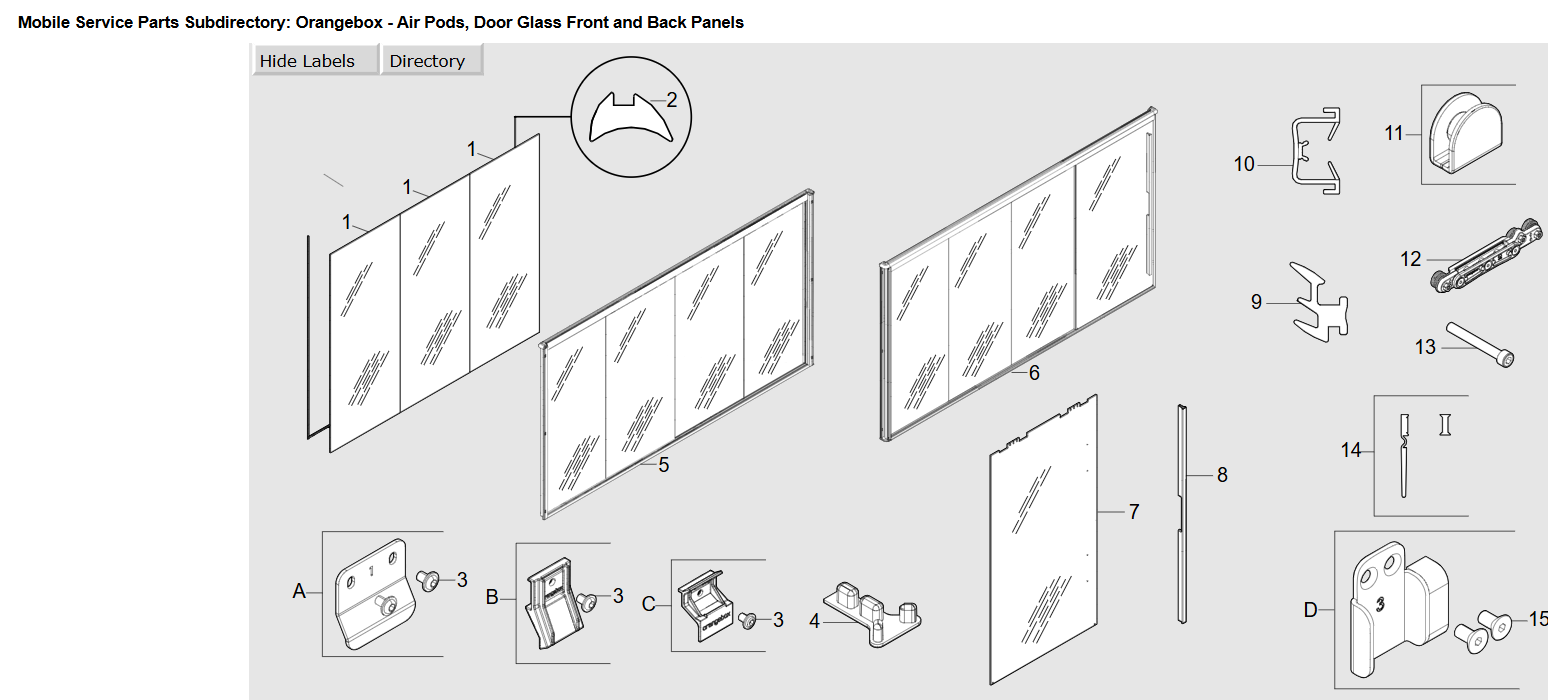

Use the exploded diagram below to identify the correct replacement component before submitting a parts request.
[Steelcase...ack Panels | PDF]
Source: Steelcase Product Reference - Door Glass Front and Back Panels [Steelcase...ack Panels | PDF]
