Overview
This article provides a service parts reference for Orangebox Air™ Pods Roof Actuator and Fan Assemblies. Use the exploded-view diagram and itemized tables below to identify replacement roof actuators, crank arms, fan assemblies, ventilation components, roof drive hardware, and roof cassette panels.
All tables include the corresponding Item Number shown in the service parts diagram for easy cross-reference during service and replacement part ordering. Steelcase Product Reference - Air Pods, Roof Actuator and Fan Assembly [Steelcase...n Assembly | PDF]

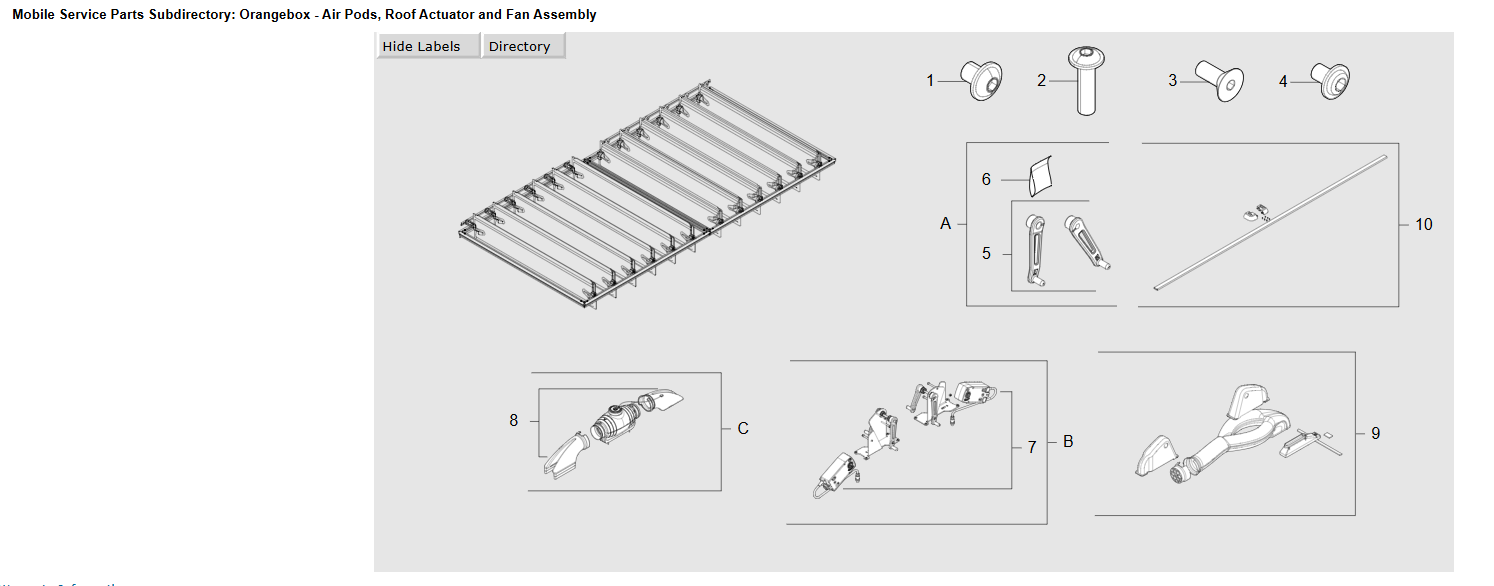

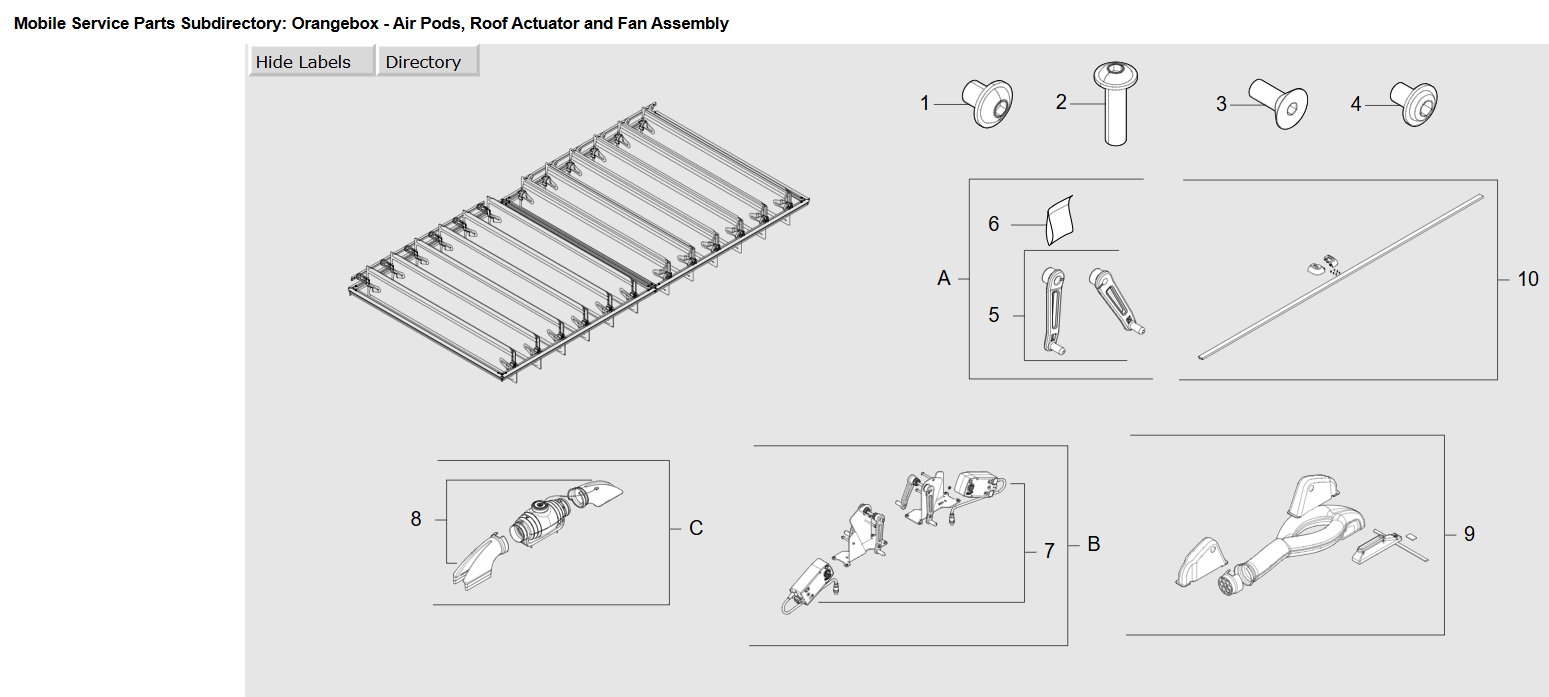

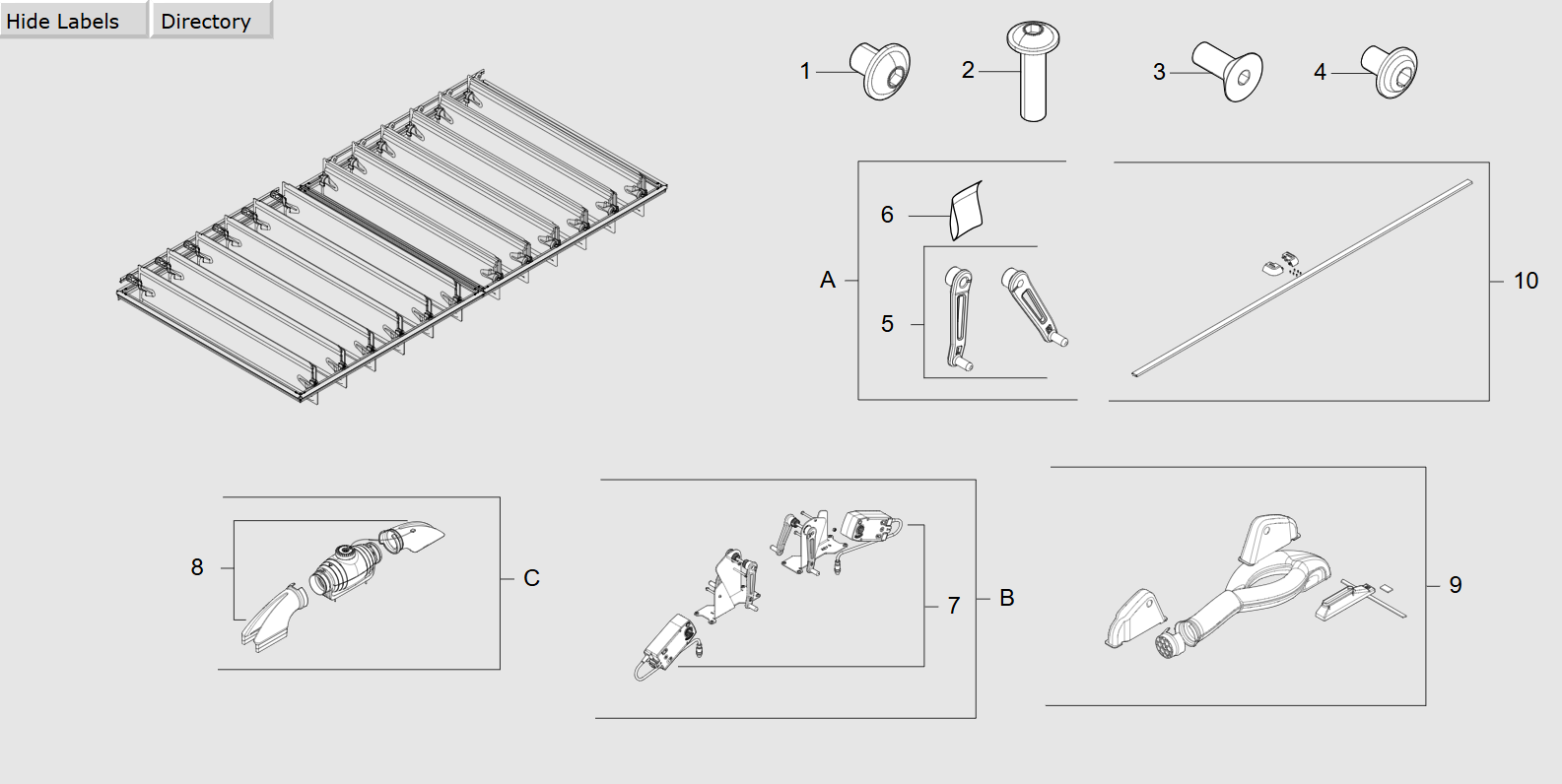

Exploded View Reference
Use the item numbers shown below when identifying replacement components.
Source: Steelcase Product Reference - Air Pods, Roof Actuator and Fan Assembly [Steelcase...n Assembly | PDF]
Applies To
- Air23
- Air25
- Air27
- Air29
Certain components are specific to particular Air™ Pod models. Verify the product model before ordering replacement parts. [Steelcase...n Assembly | PDF]
Roof Drive Assemblies
Crank Arm Components
| Item | Part Number | Description |
|---|---|---|
| A | Discontinued | Arm - Crank, Left Hand and Right Hand, Before 6/10/2019 |
| A | Discontinued | Arm - Crank, Left Hand and Right Hand, On or After 6/10/2019 |
| 5 | 1498085001SR | Arm - Crank, Left Hand and Right Hand |
| 6 | 1498086001SR | Hardware - Roof Drive |
Important Notes
- Earlier crank arm assemblies are discontinued.
- Discontinued crank arms have been replaced by Item 5 and Item 6 service parts.
- Replacement applies to both felt roof blade and aluminum roof blade configurations. [Steelcase...n Assembly | PDF]
Actuator Kits
| Item | Part Number | Description |
|---|---|---|
| B | 1464039001SR | Actuator Kit - Dual Arm, 10nm, No Cover, Air25/Air27 |
| B | 1464041001SR | Actuator Kit - Dual Arm, 20nm, No Cover, Air29 |
| B | 1464040001SR | Actuator Kit - Single Arm, 10nm, No Cover, Air23/Air27 |
| B | 1464042001SR | Actuator Kit - Single Arm, 20nm, No Cover, Air29 |
These kits provide complete roof actuation assemblies for the corresponding Air Pod models. [Steelcase...n Assembly | PDF]
Replacement Actuators
| Item | Part Number | Description |
|---|---|---|
| 7 | 1525095001SR | Actuator - 10nm for Air23/Air25/Air27 |
| 7 | 1525096001SR | Actuator - 20nm for Air29 |
Use these replacement actuators when servicing existing actuator assemblies. [Steelcase...n Assembly | PDF]
Fan Assemblies
| Item | Part Number | Description |
|---|---|---|
| C | 1446611001SR | Fan Assembly - Air23/Air25/Air27 |
| C | 1446611002SR | Fan Assembly - Air29 |
These assemblies provide roof ventilation and air circulation within the pod. [Steelcase...n Assembly | PDF]
Ventilation Components
| Item | Part Number | Description |
|---|---|---|
| 8 | 1446613001SR | Cowl - Ventilation, Before 6/19/2023 |
| 9 | 1457670001SR | Kit - Duct, Fan, On or After 6/19/2023 |
| 10 | 1446618001SR | Kit - Parcel, Half Pod, Air23 |
These components support airflow management and fan ducting within the roof assembly. [Steelcase...n Assembly | PDF]
Roof Opening Components
| Item | Part Number | Description |
|---|---|---|
| 11 | OBAIROGA029SR | Roof Opening Kit - Left Hand and Right Hand |
| 13 | OBAIROGA027SR | Roof Opening Kit - Intermediate |
Note: Graphics are not available for these service parts in the source documentation. [Steelcase...n Assembly | PDF]
Roof Cassette Panels
| Item | Part Number | Description |
|---|---|---|
| 14 | 1446616001SR | Panel - Roof, Cassette, Standard |
| 14 | 1446616002SR | Panel - Roof, Cassette, Hoop to Hoop |
| 14 | 1446616003SR | Panel - Roof, Cassette, Hoop to Glass, Air29 |
| 14 | 1446616004SR | Panel - Roof, Cassette, Hoop to Hoop, Air29 |
Note: Graphics are not available for roof cassette part variations in the source document. [Steelcase...n Assembly | PDF]
Fasteners & Hardware
| Item | Part Number | Description | Quantity |
|---|---|---|---|
| 1 | OBSYSFIX059SR | Screw - Button Head, Flange, M8 x 10mm | 4 |
| 2 | OBSYSFIX008SR | Screw - Button Head, Flange, M8 x 30mm | 8 |
| 3 | OBSYSFIX020SR | Screw - Countersunk, M8 x 16mm | 2 |
| 4 | OBSYSFIX013SR | Screw - Hex, M8 x 12mm | 14 |
| 12 | OBSYSFIX030SR | Screw - Button Head, M6 x 12mm | 6 |
[Steelcase...n Assembly | PDF]
Complete Service Parts Summary
| Item | Part Number | Description |
|---|---|---|
| A | Discontinued | Original Crank Arm Assemblies |
| B | Various | Actuator Kits |
| C | 1446611001SR / 1446611002SR | Fan Assemblies |
| 1 | OBSYSFIX059SR | Screw - Button Head, Flange, M8 x 10mm |
| 2 | OBSYSFIX008SR | Screw - Button Head, Flange, M8 x 30mm |
| 3 | OBSYSFIX020SR | Screw - Countersunk, M8 x 16mm |
| 4 | OBSYSFIX013SR | Screw - Hex, M8 x 12mm |
| 5 | 1498085001SR | Arm - Crank |
| 6 | 1498086001SR | Hardware - Roof Drive |
| 7 | 1525095001SR / 1525096001SR | Actuator |
| 8 | 1446613001SR | Cowl - Ventilation |
| 9 | 1457670001SR | Kit - Duct, Fan |
| 10 | 1446618001SR | Kit - Parcel, Half Pod |
| 11 | OBAIROGA029SR | Roof Opening Kit |
| 12 | OBSYSFIX030SR | Screw - Button Head, M6 x 12mm |
| 13 | OBAIROGA027SR | Roof Opening Kit - Intermediate |
| 14 | Various | Roof Cassette Panels |
[Steelcase...n Assembly | PDF]
Ordering Guidelines
Before ordering replacement components:
- Verify whether the pod is Air23, Air25, Air27, or Air29. [Steelcase...n Assembly | PDF]
- Locate the damaged component in the exploded-view diagram. [Steelcase...n Assembly | PDF]
- Identify the corresponding Item Number. [Steelcase...n Assembly | PDF]
- Match the Item Number to the service parts tables above. [Steelcase...n Assembly | PDF]
- Verify actuator size (10nm or 20nm) and single-arm versus dual-arm configuration before ordering. [Steelcase...n Assembly | PDF]
- Confirm roof cassette style when ordering replacement roof panels. [Steelcase...n Assembly | PDF]
