Overview

This article provides a service parts reference for Orangebox Air Pods Upholstery Panels. Use the exploded parts diagram to identify the correct replacement component and corresponding service part number when ordering replacement parts.

[Steelcase...ery Panels | PDF]

Screen Assemblies

These screen assemblies are used within the Air Pods upholstery panel system. [Steelcase...ery Panels | PDF]

Panel Components

External Upholstered Panels

[Steelcase...ery Panels | PDF]

Internal Upholstered Panels

[Steelcase...ery Panels | PDF]

AODA Components

Graphics not available for this component. [Steelcase...ery Panels | PDF]

Important Service Notes

Power Side Cutout Panels

The following panel types should always be used on Layer 1 (bottom panels) of the power side:

• OBAIRGA161SR – Corner Single Panel with Cutout
• OBAIRGA163SR – Intermediate Panel with Cutout
• OBAIRGA157SR – Corner Double Panel with Cutout

Part Note: Layer 1 (bottom panels) on the power side should always use the cutout panels. [Steelcase...ery Panels | PDF]

Connectors and Hardware

[Steelcase...ery Panels | PDF]

Table Leg Components

Graphics are not available for these components within Product Reference. [Steelcase...ery Panels | PDF]

Ordering Guidelines

When submitting a replacement part request, provide the following information:

1. Air Pod model (Air23, Air25, Air27, or Air29)
2. Item number from the exploded diagram
3. Service part number
4. Part description
5. Quantity required
6. Fabric/color information (if applicable)

Providing complete product and part information helps ensure accurate ordering and fulfillment. [Steelcase...ery Panels | PDF]

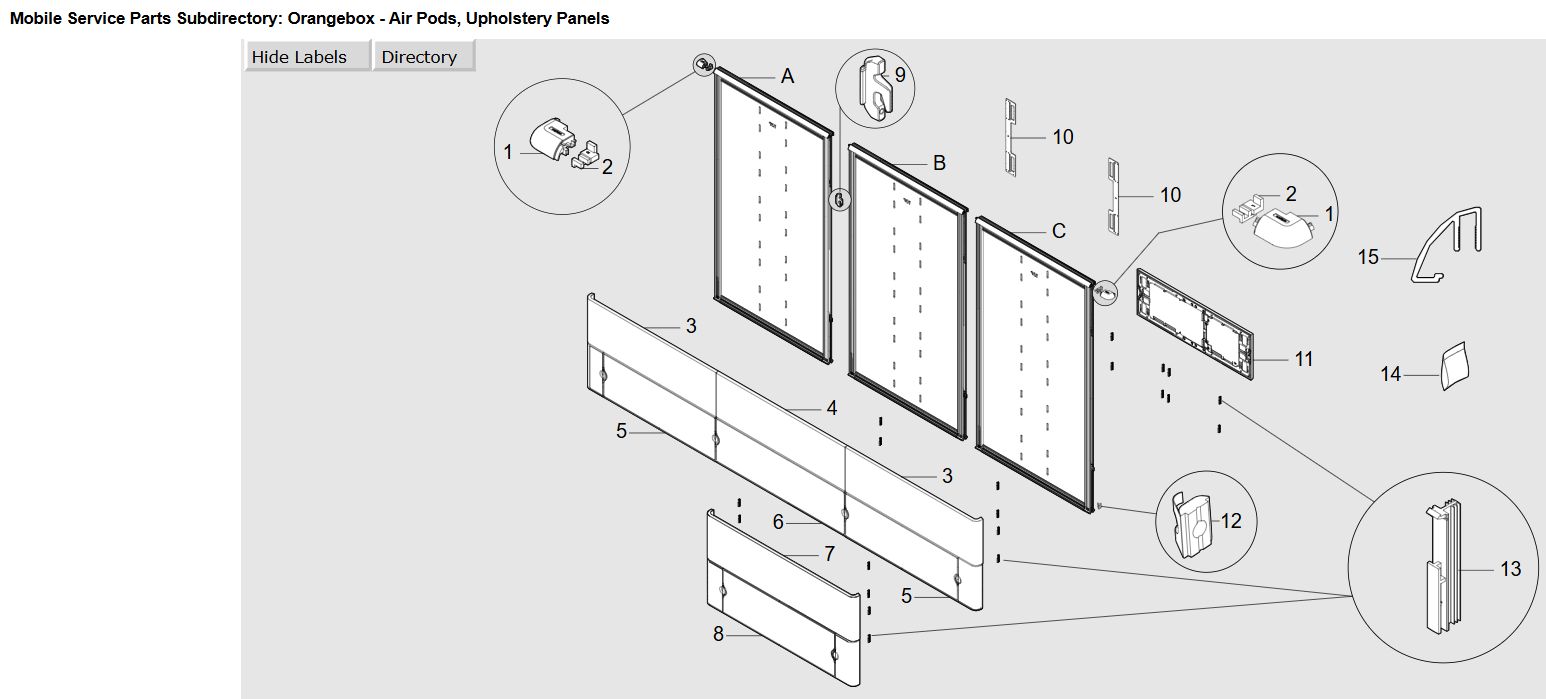

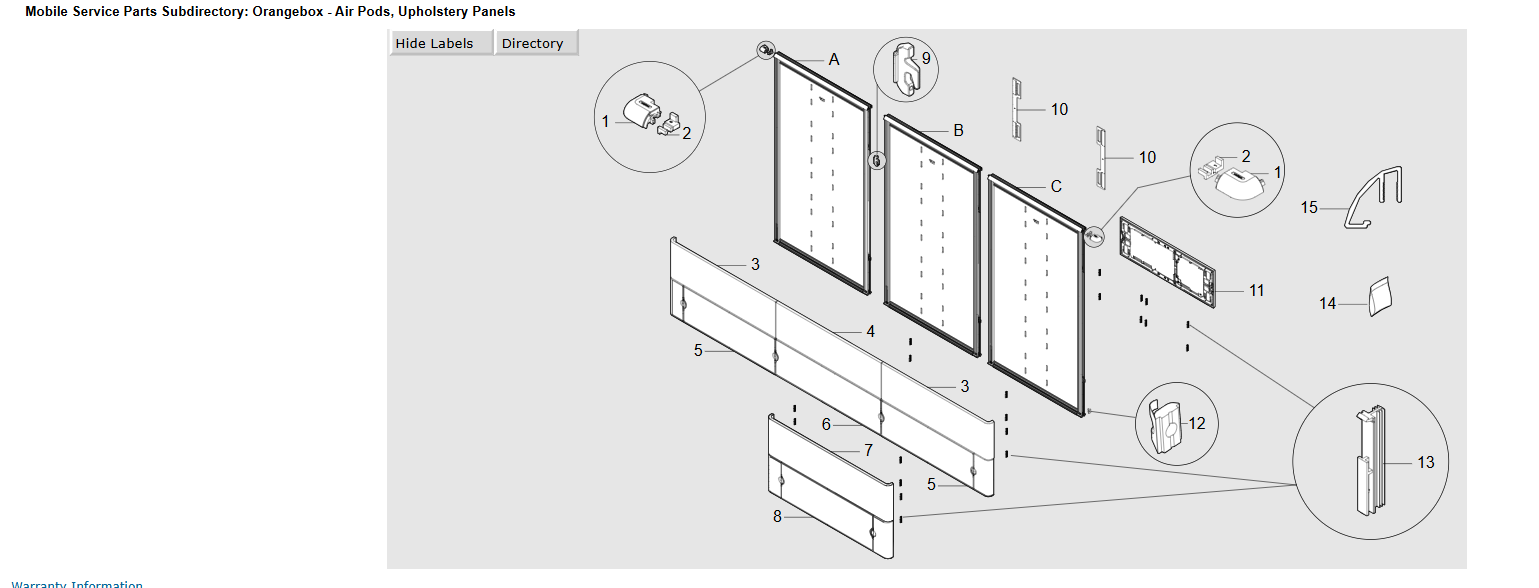

Service Reference Diagram

Use the upholstery panel diagram to identify replacement parts and verify component locations before submitting a service order.

Source: Steelcase Product Reference - Upholstery Panels [Steelcase...ery Panels | PDF]
